How to Choose the Right 200mm Inline Fan for Your Home Ventilation System

Why the Right Inline Fan Makes All the Difference

If you've ever lived in a damp, stuffy New Zealand home, you know how much difference good ventilation makes. Whether you're upgrading an HRV system, replacing a DVS fan, or installing fresh ducting, choosing the right 200mm inline fan is critical to getting the airflow — and the air quality — your home deserves.

In this guide, we break down exactly what to look for so you can buy with confidence.

What Is a 200mm Inline Fan?

An inline fan sits inside the ductwork rather than at the outlet grille. This makes it quieter at the point of use and more efficient at moving air over longer duct runs. A 200mm round inline fan connects to 200mm diameter ducting on both the inlet and outlet — making it a popular choice for whole-home ventilation, bathroom extraction, and HRV/DVS system upgrades.

The Motor Make: Why It's Everything

When it comes to inline fans, the motor is the heart of the unit — and the make of the motor is everything. A cheap or poorly engineered motor will run hot, wear out faster, and cost you more in replacements over time. A quality motor runs cooler, quieter, and lasts years longer.

The gold standard in fan motor manufacturing is ebm-papst. Widely regarded as the world's leading manufacturer of fans and motors, ebm-papst motors are renowned for their exceptional efficiency, ultra-low noise, and outstanding longevity. Many premium HRV and ventilation systems specify ebm-papst motors precisely because they simply outperform the competition. If you want a fan that will still be running reliably in 10+ years, look for ebm-papst inside.

Key Specs to Look For

1. Airflow (m³/hr or l/s)

Airflow is the most important performance metric. For a 200mm inline fan, look for a minimum of 500 m³/hr for general ventilation, and up to 720 m³/hr (200 l/s) for high-demand applications like whole-home HRV systems. More airflow means faster air changes and better moisture control.

2. Noise Level (dB)

Inline fans are generally quieter than wall or ceiling fans, but noise still matters — especially in bedrooms and living areas. Look at two figures:

• Radiated noise — sound emitted through the fan body (lower is better for in-ceiling installs)
• Discharge noise — sound emitted through the duct outlet

A quality 200mm inline AC fan should have a radiated NR of around 43 dB and discharge NR around 57 dB — comfortable for continuous operation.

3. IP / IPX Rating

The IPX rating tells you how well the fan is protected against moisture. For bathroom and laundry ventilation, you need at least IPX2 (protected against dripping water). For outdoor or high-humidity installs, look for IPX4 or higher.

4. Motor Protection

Always choose a fan with thermal cut-out protection. This automatically shuts the motor down if it overheats, preventing damage and fire risk. A manual reset version gives you control over restart after a trip.

5. AS/NZS Certification

For any electrical product installed in a New Zealand home, compliance with AS/NZS 60335.1 and 60335.2.80 is essential. This ensures the fan meets Australian and New Zealand safety standards for household appliances. Always check for a valid electrical certification number before purchasing.

AC vs DC Inline Fans

AC (alternating current) fans are the traditional choice — robust, reliable, and straightforward to wire. They're ideal for direct replacement of existing HRV or DVS fans where the wiring is already in place. DC fans offer variable speed control and slightly lower running costs but typically cost more upfront.

For most NZ homeowners replacing an existing system, an AC inline fan is the practical, cost-effective choice.

Installation Tips

• Ensure your existing ducting is 200mm diameter before ordering — measure at the collar, not the grille
• Support the fan body independently from the duct — don't let the ducting carry the weight
• Use flexible duct connections on both sides to reduce vibration transfer
• Check your local council requirements — some installations require a licensed electrician

Ready to Upgrade?

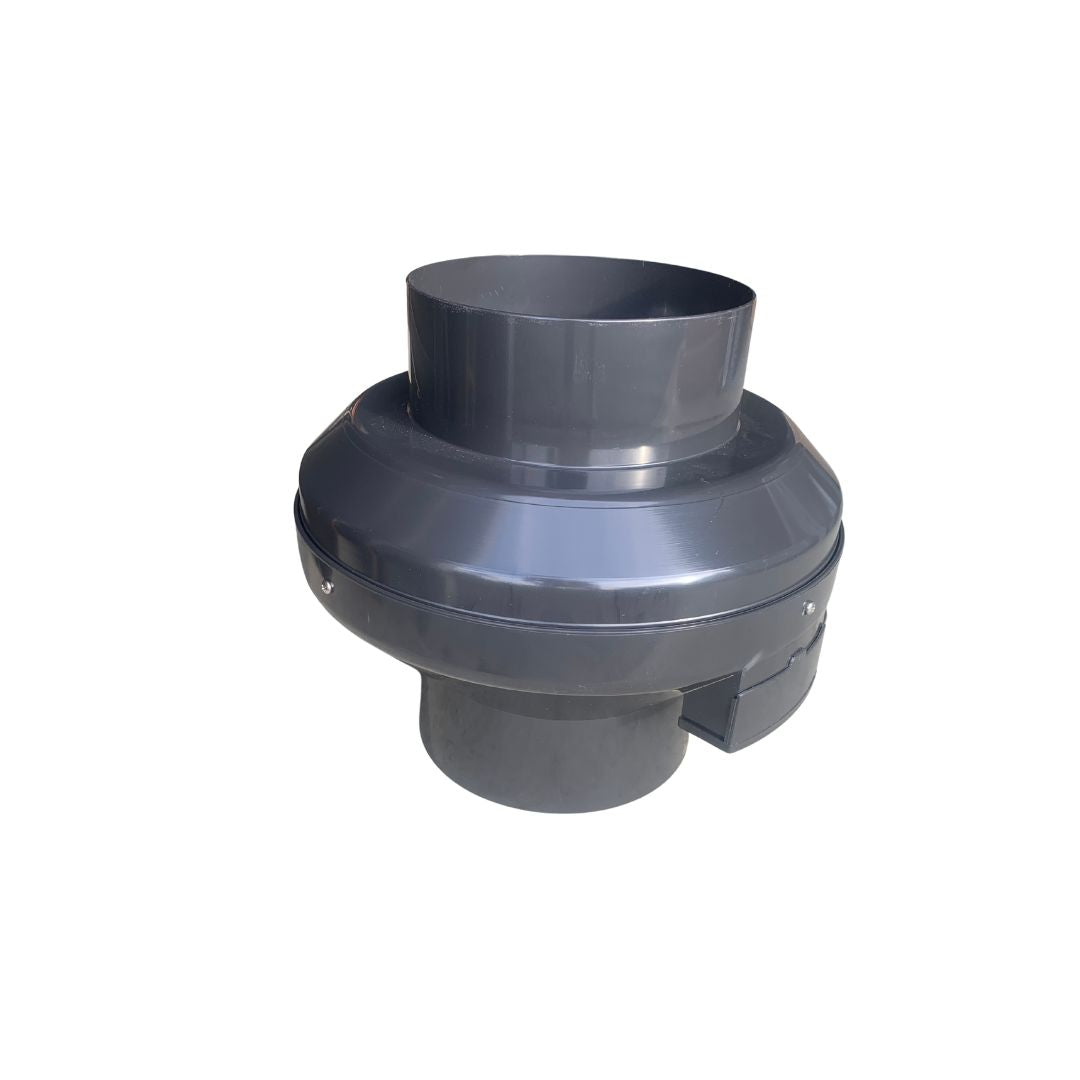

Our 200mm Round In-Line AC Fan delivers 720 m³/hr of airflow, IPX2 protection, thermal cut-out motor protection, and full AS/NZS 60335.1–60335.2.80 certification — everything you need for a reliable, long-lasting ventilation upgrade.

Browse our full range of inline fans and ventilation parts or get in touch if you need help matching the right fan to your system.
